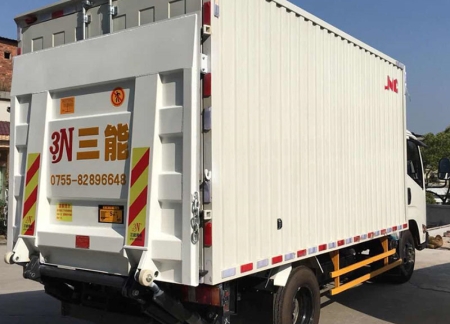

1.5T cantilever hydraulic car tail lift

The 1.5T cantilever hydraulic car tail lift is currently the most common tail plate on the market. Its working method is to find a fixed fulcrum on the car beam, and use this fulcrum as a support to extend two oil cylinders towards the rear of the car in a cantilevered manner. The principle of four-bar parallel mechanism is used to push the large plate platform to lift goods, and then two other oil cylinders are set up to achieve the flipping of the platform in the framework of the four-bar parallel mechanism. This enables the tailboard of the car to perform four actions of rising, falling, and flipping up and down through a cargo platform; Thus meeting all the functions required for loading and unloading goods. At present, the automobile tailboards developed by Sanneng Electromechanical Equipment Co., Ltd. are classified by weight into six types: 0.5 tons, 1.0 tons, 1.5 tons, 2 tons, 2.5 tons, and 3 tons. The three energy tailboard has four lifting heights: 0.7 meters, 1.05 meters, 1.25 meters, and 1.52 meters. The three types of tailboards according to their structural types include cantilever car tailboards, vertical car lift tailboards, folding car tailboards, platform car tailboards, wheelchair tailboards, aluminum alloy car tailboards, and oil-free car lift tailboards.
